IMikhiqizo EYENZIWE

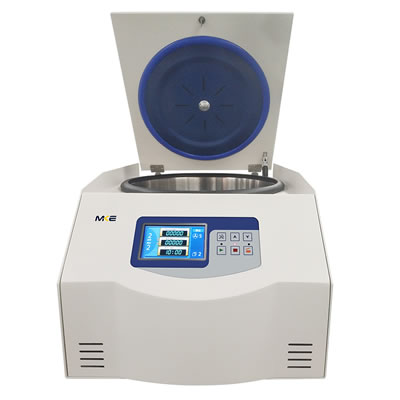

I-Portable Low Speed PRP Centrifuge PRF/CGF Multi-functional Variable Speed Machine
| Izicelo: | Izibhedlela, Imitholampilo Yezilwane, Amalebhu Okudla, Amanyuvesi & Amakolishi, Amalebhu Emithi, Amalebhu Amasiko Ezilwane, isikhungo sobuhle |
| UMax.Speed | 6000 rpm |
| Ubukhulu. I-RCF | 4588xg |
| Umthamo omkhulu | 8*100ml |
| Ama-Rotors ahambisanayo | Fixed angle rotor, swing out rotor |
| Khombisa | I-LCD |
| Inombolo Model: | TD5B |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Iwaranti | Iwaranti yonyaka ongu-1 yawo wonke umshini, iwaranti yeminyaka emi-3 ye-compressor kanye newaranti yeminyaka emi-5 yemoto. Izingxenye ezishintshayo zamahhala nokuthunyelwa ngaphakathi kwewaranti. |
- Incazelo
- Imininingwane Technical
- Rotors kanye Izesekeli
- Competitive Advantage
Low speed centrifuge TD5B is used for separating and purifying materials based on their density and size. They are essential tools in many scientific and medical fields, allowing researchers and scientists to study and understand various biological and chemical processes. Mainly used in orthopedics department, pain department, surgery department,medical cosmetology etc. PRP/ACT contain much growth factor, can speed up the recovery of soft tissue and bone tissue, reduce postoperative reaction,anti-infection, also can fresh skin.
Design
● Izindlu zensimbi kanye negumbi le-centrifuge lensimbi engagqwali kuyizihlanzi ezikwazi uku-autoclave futhi zimelana noketshezi olubulala amagciwane.
● Iwindi lokubuka esivaloni sokulinganisa isivinini kanye nesilinganiso somsindo.
● Ukulawula i-Microprocessor ene-frequency conversion AC motor drive
● I-LCD Bonisa amapharamitha we-Speed, Timer, RCF, Rotors, Program(Memory), Ulwazi Lokusheshisa Nokunciphisa kanye nolwazi lwekhodi yephutha.
● Iringi yokuvala enezendlalelo ezimbili eyenzelwe isivalo se-centrifuge kanye nethuluzi lokugcina ukuvala okuhle isikhathi eside.
● Izinhlelo ezingu-25 ezigciniwe, zingadlulisa phakathi kwe-RPR,CGF, APRF, IPRF.
● Uhlelo lwejubane oluguquguqukayo olwakhelwe ngaphakathi, olufanele i-60ml/20ml/10ml/8ml isirinji yomjovo noma ukuhlukaniswa kwe-PRP.
● Amabhakede ama-Swing, ama-adaptha noma ama-rotor angabulawa amagciwane ngokushisa okuphezulu.
Kuyasebenziseka
● Iyahleleleka futhi iyabekezeleleka, igcina izinhlelo ezingafika kwezingu-30 futhi ihlinzeka ngokufinyelela okuqondile komsebenzisi ngokulondolozwa kokuchofoza kokhiye okukodwa. Ipharamitha egciniwe: inhlanganisela ihlala kumemori ngisho nangemva kokuba i-centrifugation ivaliwe.
●Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
●Automatic lid-locking and holding during rotor run
●Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor.
● Ukuxazulula inkinga okuzenzakalelayo nenkomba yekhodi yephutha ne-alamu esikrinini.
● “Thulisa”ubuchwepheshe belungelo lobunikazi. Izinga lomsindo lingaphansi kuka-58 decibel ngesivinini esiphezulu sokujikeleza.
● Ukuguqulwa kwe-rpm/rcf okuzenzakalelayo
● Isistimu yokuhlonza i-rotor ezenzakalelayo, ukuhlonza i-rotor enekhodi kuvimbela i-rotor ukuthi ingasheshi kakhulu.
Ukuphepha
● Ikhiqizwe ngokwemithetho yezokuphepha yamazwe ngamazwe (isb. I-IEC 61010)
● Ukuphepha Ukuxhumana kwesivalo sikagesi, isicabha asikwazi ukuvuleka uma i-rotor isebenza futhi umshini ngeke usebenze lapho isivalo sivuleka futhi kuvela ikhodi yephutha.
● Ukukhululwa kwesivalo sesivalo esiphuthumayo lapho amandla ephela (iwusizo kakhulu ekuphazamisekeni kwamandla okungalindelekile).
● Ihinge yegesi yokuvikela ukudonsa kwesivalo.
● Izivikelo zokuphepha zenzelwe isivinini esingaphezulu, ukushisisa (injini, igumbi), ukungalingani njll ukuze kuqinisekiswe ukuphepha komshini womuntu.
| Ibanga lesivinini(rpm) | 0-6000rpm eshintshwayo | Ibanga lesikhathi | 1-99imizuzu 59s adjustable |
| Umthamo omkhulu(ml) | 8*100ml | Ukunemba okusheshayo | ±10r/min |
| Ububanzi be-RCF (xg) | 0-4588xg elungisekayo | I-ACC/DEC | 1-10 amanani |
| Umsindo (dBA) | ≦58dB(A) | Isisindo esiphelele (ngaphandle kwe-rotor) | 40KGS |
| Amandla kagesi | I-AC220V, 50HZ, 10A, 570W | Isilinganiso (mm) | I-620x440x360mm (LxWxH) |
| Cha | Into | Isikhulu. amandla | UMax.speed | I-Max.RCF | Note |
|
NO.1
|
I-Angle rotor | 12x15/10/5ml | 6000r / iminithi | 4588xg | PP/PC tube |
| I-Adapter | 12x2ml | PP/PC tube | |||
|
NO.2
|
Swayipha i-rotor | insimbi yohlaka lwe-rotor | 4000r / iminithi | 3041xg | PP/PC tube |
| Swing frame | 4x100ml | PP/PC tube | |||
| I-Adapter | 4x50ml | PP/PC tube | |||
| I-Adapter | 4x20ml | PP/PC tube | |||
| I-Adapter | 4x8/10ml | PP/PC tube | |||
|
NO.3
|
Swayipha i-rotor | insimbi yohlaka lwe-rotor | 4000r / iminithi | 3041xg | Isipetu sokujova noma ishubhu le-PRP |
| Swing frame | 4x2x100ml | PP/PC tube | |||
| I-Adapter | 4x2x100ml | PP/PC tube | |||
| I-Adapter | 4x2x20ml | PP/PC tube | |||
| I-Adapter | 4x2x8/10ml | PP/PC tube | |||
 | |||||
1. Umkhiqizi we-centrifuge ochwepheshe, intengo yokuncintisana.
I-2.ISO9001, ISO13485, CE, Isitifiketi se-SFDA, yonke imishini ihlolwa ngekhwalithi eqinile kanye nokupakishwa okuhle ngaphambi kokuthutha.
3.Ukwesekwa kobuchwepheshe besikhathi eside kanye nokusiza amakhasimende okuphrofeshinali kuzo zonke izigaba zokudayiswa komkhiqizo, ukulethwa nokusebenza.Ithimba lethu lesevisi eliqeqeshwe kakhulu nelinolwazi oluningi likunikeza izinga eliyingqayizivele lokusekelwa ekuthengeni kwakho ukuphila kwakho konke.
4.Singakwazi futhi ukunikeza izixazululo ezenziwe ngokwezifiso zezidingo ezikhethekile zamakhasimende.
5.Inikwe amandla ngeqembu elisebenza kahle lonjiniyela elisekelwa isipiliyoni seminyaka emikhakheni eyahlukene, inkampani iqinisekisa ukuthi umkhiqizo ngamunye oshiya iyunithi yokukhiqiza usezingeni eliphezulu ngazo zonke izici.
