IMikhiqizo EYENZIWE

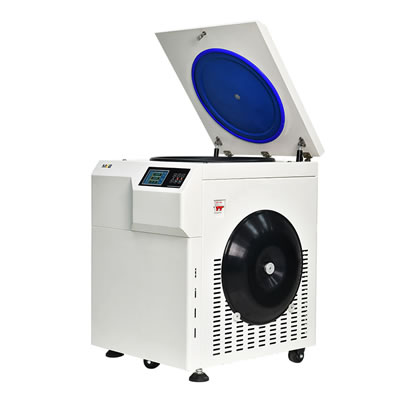

I-Centrifuge Enkulu Yomthamo 4 Izikhwama 5000rpm Eziqandisiwe 500ml 450ml Isikhwama Segazi
| Izicelo: | Amalebhu ezimboni, Izibhedlela, Imitholampilo Yezilwane, Amalebhu Okudla, Amanyuvesi & Amakolishi, Amalebhu Emithi, Amalebhu Amasiko Eselula |
| UMax.Speed | 6000 rpm |
| I-Max.RCF | 4752 × g |
| Umthamo omkhulu | 4 × 1000ml |
| Ibanga lokulawula ukushisa | -20 ℃ ~ + 40 ℃ |
| Ama-Rotors ahambisanayo | Ama-engeli angaguquki + Swing out rotor |
| Khombisa | I-LCD |
| Inombolo Model: | I-DL-5M |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Iwaranti | Iwaranti yonyaka ongu-1 yawo wonke umshini, iwaranti yeminyaka emi-3 ye-compressor kanye newaranti yeminyaka emi-5 yemoto. Izingxenye ezishintshayo zamahhala nokuthunyelwa ngaphakathi kwewaranti. |
- Incazelo
- Ividiyo
- Imininingwane Technical
- Rotors kanye Izesekeli
- Competitive Advantage
Le centrifuge esebenza kahle kakhulu ifaka umthamo ohlaba umxhwele ongafika ku-4 x 1,000 ml kurotha eshwibayo.
Amabhakede amaningi nama-adaptha angakwazi ukuthwala amashubhu namaflask ukusuka ku-0.5 ml kuya ku-1,000 ml, kanye namapuleti amancane namapuleti ajulile, futhi abasebenzisi abaningi bayakwazisa ikhono lokusebenzisa i-rotor ephumayo noma ngaphandle kwe-windshield. Inesistimu yesiqandisi esheshayo, elungiseka kahle enezinga lokushisa eliphakathi kuka -20°C kuya ku-+40°C.
Umsebenzi wokupholisa osheshayo we-Rapid Temp uvumela igumbi le-centrifuge nezinto ezisetshenziswayo ukuthi zipholiswe ngaphambili zibe izinga lokushisa elichaziwe.
Design
● Isakhiwo sensimbi sekhwalithi ephezulu esinegumbi lensimbi elakhelwe ngaphakathi, elingaqhumeki, 304# igumbi lensimbi engagqwali liyakwazi uku-autoclave , okokuhlanza okungazweli kanye noketshezi lokubulala amagciwane.
● Ukulawulwa kwe-Microprocessor, isistimu ye-flexible shaft drive yokushayela ngokuqondile ikhanda eliphendukayo, ukugijima okushelelayo, ukudlidliza okuncane, umsindo ophansi.
● Idrayivu yokuguqula imvamisa, isilawuli se-microcomputer, umbala wokuthinta isibonisi esikhulu sesikrini .
● Iwindi lokubuka esivaloni sokulinganisa isivinini kanye nesilinganiso somsindo.

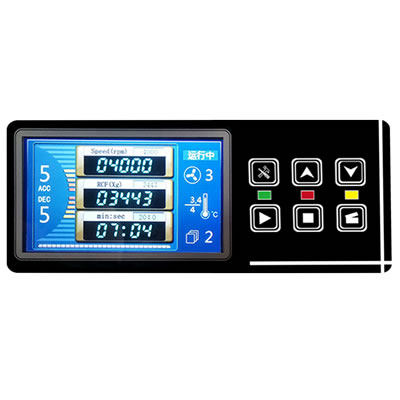

● Isikrini sokuthinta esingu-7 intshi sibonisa amapharamitha Esivinini, Isikhathi, i-RCF, Amarotha, Uhlelo(Inkumbulo), Ulwazi Lokusheshisa Nokunciphisa kanye nolwazi lwekhodi yephutha.
● Umzimba omkhulu we-rotor one-windshield, unciphisa ukumelana ne-rotor, wandise impilo yesevisi yemoto.
● Ikhava yomnyango kanye nomzimba kufakwe indandatho ye-silicone enezendlalelo ezimbili
Kuyasebenziseka
● I-compressor yamahhala ye-CFC enomsebenzi wokupholisa ngaphambilini, isiqandisi esiwumjikelezo ophindwe kabili, isilawuli sokushisisa nokupholisa esiyiluphu ephindwe kabili, ±1℃ ukunemba kwezinga lokushisa eliphezulu. Izinga lokushisa lisukela -20°C kuya ku-40°C,inzwa yezinga lokushisa ngaphakathi kwegumbi.
● Iyahleleleka futhi iyabekezeleleka, igcina izinhlelo ezingafika kwezingu-30 futhi ihlinzeka ngokufinyelela okuqondile komsebenzisi ngokulondolozwa kokuchofoza kokhiye okukodwa. Ipharamitha egciniwe: inhlanganisela ihlala kumemori ngisho nangemva kokuba i-centrifugation ivaliwe.
● Ihlinzeka ngokusheshisa kwe-10-speed kanye namajika e-deceleration, ukuze kugwenywe ngempumelelo i-sedimentation yesibili, ngomphumela ongcono we-centrifugation.
● Ukuvala isivalo okuzenzakalelayo nokubamba ngesikhathi sokugijima kwe-rotor
● Ama-rotor ashintshaniswa kalula, isixhumi esikhethekile se-rotor esenza kube lula ukulayisha nokulayisha i-rotor.
● Isistimu yokuzihlola ene-chamber-coating ephezulu kanye nokuvikela
● "Thulisa" ubuchwepheshe obunelungelo lobunikazi, ukusebenza kwesivinini esiphezulu kungaphansi kwama-decibel angu-58.
● Ukuguqulwa kwe-rpm/rcf okuzenzakalelayo
● Isistimu yokuhlonza i-rotor ezenzakalelayo, ukuhlonza i-rotor enekhodi kuvimbela i-rotor ukuthi ingasheshi kakhulu.
Ukuphepha
● Ikhiqizwe ngokwemithetho yezokuphepha yamazwe ngamazwe (isb. I-IEC 61010)
● Ukuphepha Ukuxhumana kwesivalo sikagesi, isicabha asikwazi ukuvuleka uma i-rotor isebenza futhi umshini ngeke usebenze lapho isivalo sivuleka futhi kuvela ikhodi yephutha.
● Ukukhululwa kwesivalo sesivalo esiphuthumayo lapho amandla ephela (iwusizo kakhulu ekuphazamisekeni kwamandla okungalindelekile).
● Ihinge yegesi yokuvikela ukudonsa kwesivalo.
● Izivikelo zokuphepha zenzelwe isivinini esingaphezulu, ukushisisa (injini, igumbi), ukungalingani njll ukuze kuqinisekiswe ukuphepha komshini womuntu.
| UMax.speed | 6000 rpm | I-Max.rcf | 4752 × g |
| Umthamo omkhulu | 4 × 1000ml | Ukunemba okusheshayo | ± 10rpm |
| motor | I-Frequency Converter motor | Ibanga lesikhathi | 1 ~ 99min |
| Khombisa | I-LCD | Noise | <58dB (A) |
| Dimension | 790×670×900mm(L×W×H) | Amazinga okusheshisa/okwehlisa izinga/amazinga okwehlisa izinga/amazinga okwehla | 1-- 10 |
| Amandla kagesi | I-AC220V, 50Hz, 10A, 1800W | Isisindo | 200kg |

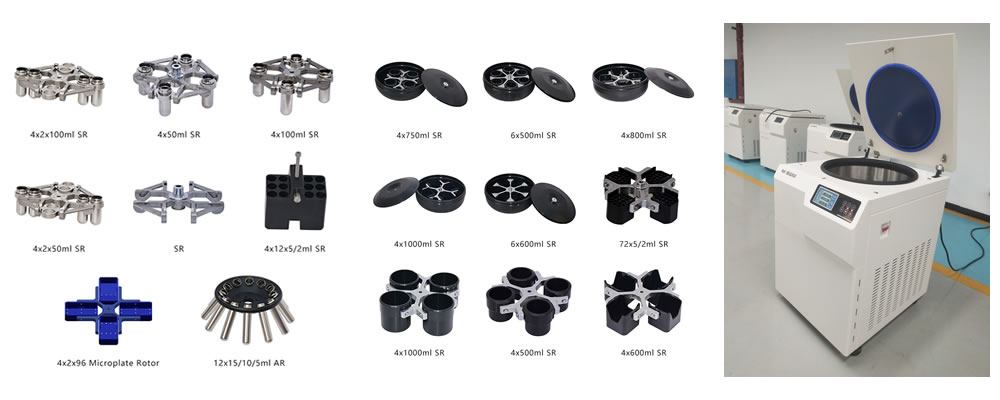

| Cha | Ukujikeleza | Umthamo | UMax.speed | Ubukhulu. I-RCF | Note |
NO.1
| I-Angle rotor | 12×15ml/10ml | 6000r / iminithi | 4588xg | PP/PC tube |
| Isixhumo | 12 × 2ml | PP/PC tube | |||
NO.2 | Swayipha i-rotor | insimbi yohlaka lwe-rotor | 5000r / iminithi | 4752xg | PP/PC tube |
| Swing frame | 4 × 100ml | PP/PC tube | |||
| Swing frame | 4 × 50ml | PP/PC tube | |||
| Isixhumo | 4 × 15 / 10ml | PP/PC tube | |||
| Isixhumo | 4 × 15 / 10ml | PP/PC tube | |||
NO.3 | Swayipha i-rotor | i-rotor yensimbi | 4000r / iminithi | 3041xg | PP/PC tube |
| Swing frame | 4×2×100ml | PP/PC tube | |||
| Isixhumo | 4×2x15/10ml | PP/PC tube | |||
| Swing frame | 4×2×50ml | PP/PC tube | |||
| Isixhumo | 4×2x15/10ml | PP/PC tube | |||
| Swing frame | 4×8×15/10/5ml | PP/PC tube | |||
| I-Rack | 4×12×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
NO.4
| Swayipha i-rotor | 4×18×5/2ml | 4000r / iminithi | 2773xg | Vacuum amashubhu okuqoqa igazi |
NO.5 | Swing ibhakede | 4 × 600ml | 4000r / iminithi | 3354xg | Inkomishi yesikwele enekhava yomoya |
| I-adaptha ye-Decapping | 4×25×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 4×12×15/10ml | PP/PC tube | |||
| I-Adapter | 4×5×50ml | PP/PC tube | |||
| I-Adapter | 4×4×100ml | PP/PC tube | |||
NO.6
| Swing ibhakede | 6 × 600ml | 4000r / iminithi | 3400xg | Inkomishi yesikwele enekhava yomoya |
| I-adaptha ye-Decapping | 6×25×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 6×12×15/10ml | PP/PC tube | |||
| I-Adapter | 6×5×50ml | PP/PCtube | |||
| I-Adapter | 6×4×100ml | PP/PCtube | |||
NO.7
| Swing ibhakede | 4 × 500ml | 4000r / iminithi | 3354xg | Inkomishi eyindilinga enekhava yomoya |
| I-Adapter | 4×17×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 4×8×15/10ml | PP/PC tube | |||
| I-Adapter | 4×3×50ml | PP/PC tube | |||
| I-Adapter | 4 × 100ml | PP/PC tube | |||
NO.8
| Swing ibhakede | 6 × 500ml | 4000r / iminithi | 3400xg | Inkomishi eyindilinga enekhava yomoya |
| I-Adapter | 6×17×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| Isixhumo | 6×8×15/10ml | PP/PC tube | |||
| I-Adapter | 6×3×50ml | PP/PC tube | |||
| I-Adapter | 6 × 100ml | PP/PC tube | |||
NO.9
| Swing ibhakede | 4 × 800ml | 4000r / iminithi | 3443xg | Inkomishi yesikwele enekhava yomoya |
| I-adaptha ye-Decapping | 4×30×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 4×12×15/10ml | PP/PC tube | |||
| I-Adapter | 4×6×50ml | PP/PC tube | |||
| I-Adapter | 4×4×100ml | PP/PC tube | |||
NO.10
| Swing ibhakede | 4 × 750ml | 4000r / iminithi | 3443xg | Inkomishi eyindilinga enekhava yomoya |
| I-Adapter | 4×26×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 4×13×15/10ml | PP/PC tube | |||
| I-Adapter | 4×5×50ml | PP/PC tube | |||
| I-Adapter | 4×3×100ml | PP/PC tube | |||
NO.11
| Swing ibhakede | 4 × 1000ml | 4000r / iminithi | 3578xg | Inkomishi eyisiyingi enekhava yomoya |
| I-adaptha ye-Decapping | 4×42×5/2ml | Vacuum amashubhu okuqoqa igazi | |||
| I-Adapter | 4×18×15/10ml | PP/PC tube | |||
| I-Adapter | 4×7×50ml | PP/PC tube | |||
| I-Adapter | 4×4×100ml | PP/PC tube | |||
NO.12
| I-microplate rotor | 4×2×96umgodi | 4200r / iminithi | 3284xg | Inkomishi yesikwele |
| I-Adapter | 4×32×1.5ml | PP/PC tube | |||
 | |||||
1. Umkhiqizi we-centrifuge ochwepheshe, intengo yokuncintisana.
I-2.ISO9001, ISO13485, CE, Isitifiketi se-SFDA, yonke imishini ihlolwa ngekhwalithi eqinile kanye nokupakishwa okuhle ngaphambi kokuthutha.
3.Ukwesekwa kobuchwepheshe besikhathi eside kanye nokusiza amakhasimende okuphrofeshinali kuzo zonke izigaba zokudayiswa komkhiqizo, ukulethwa nokusebenza.Ithimba lethu lesevisi eliqeqeshwe kakhulu nelinolwazi oluningi likunikeza izinga eliyingqayizivele lokusekelwa ekuthengeni kwakho ukuphila kwakho konke.
4.Singakwazi futhi ukunikeza izixazululo ezenziwe ngokwezifiso zezidingo ezikhethekile zamakhasimende.
5.Inikwe amandla ngeqembu elisebenza kahle lonjiniyela elisekelwa isipiliyoni seminyaka emikhakheni eyahlukene, inkampani iqinisekisa ukuthi umkhiqizo ngamunye oshiya iyunithi yokukhiqiza usezingeni eliphezulu ngazo zonke izici.
